Joyance is a professional manufacturer of agriculture drone and cleaning drones since 2016, we have exported to more than 100 countries, We are the first company in China to produce cleaning drones, JTC60 model cleaning drone is used for building washing, window cleaning, solar panel, and roof cleaning with good feedback.

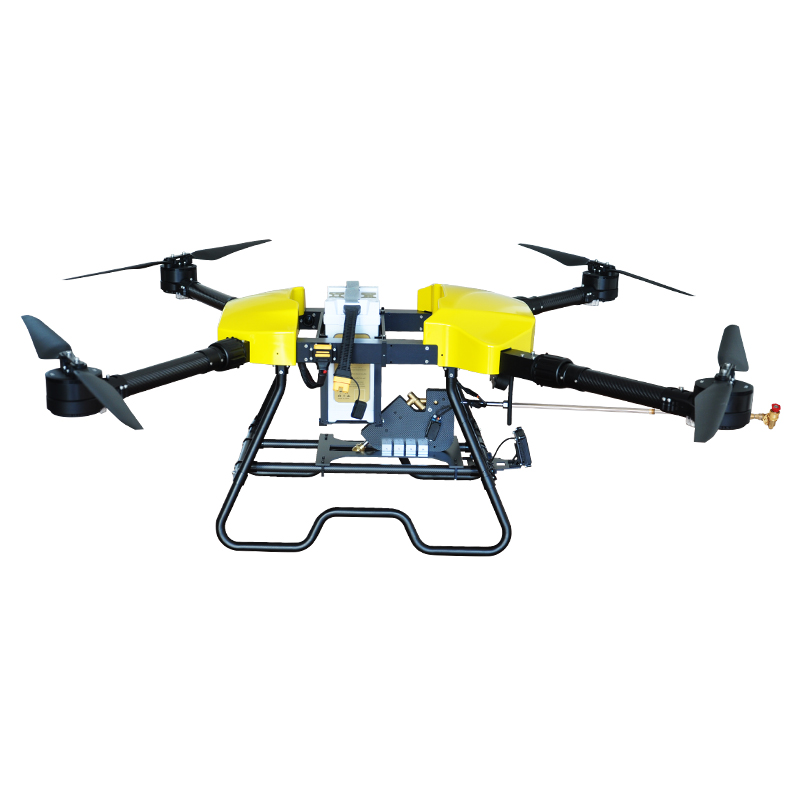

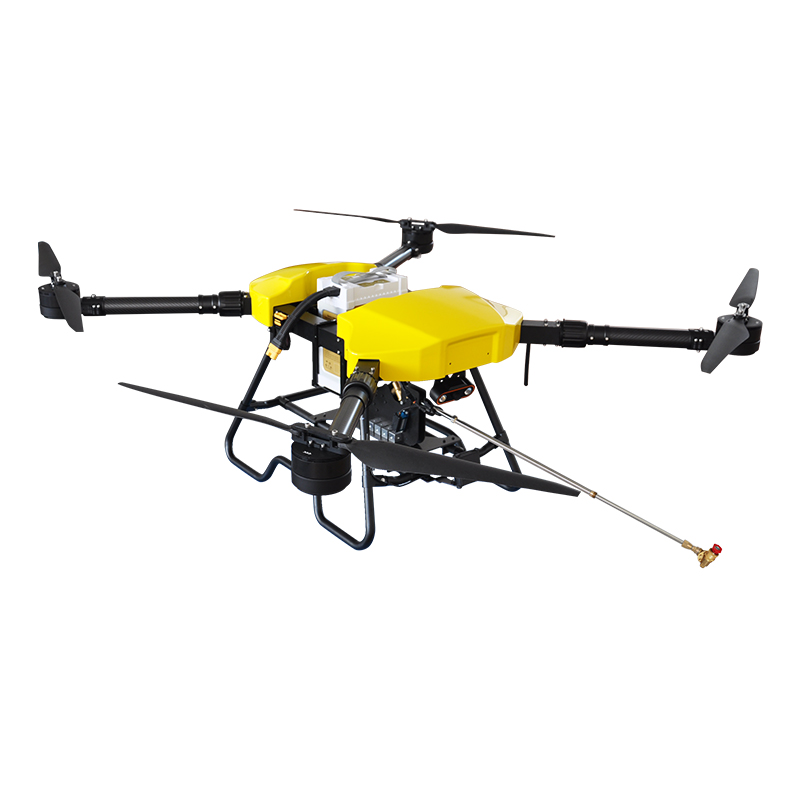

Buildings cleaning drone window cleaning drone  JTC60

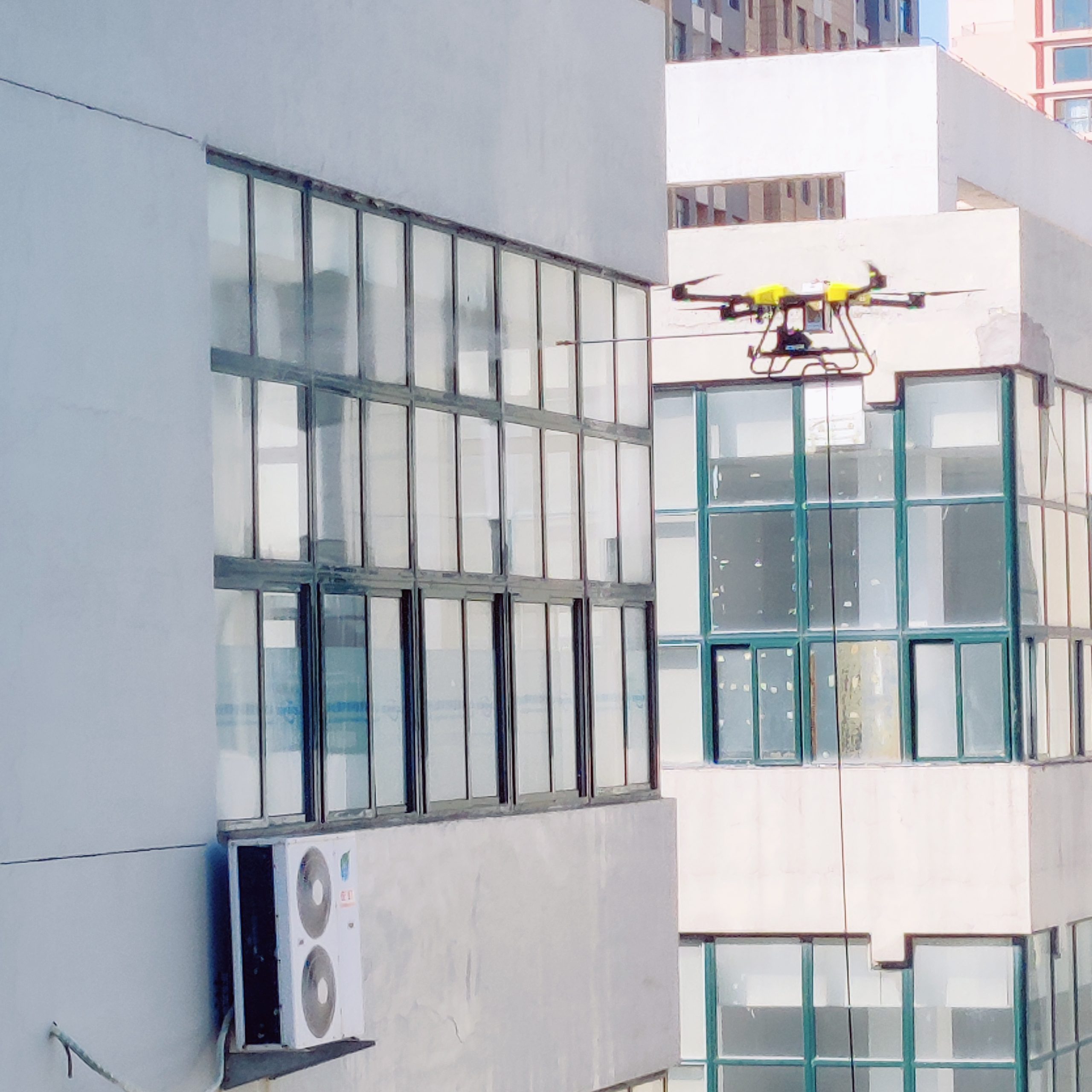

Application	Clean windows, glass, facades, roofs, solar panels
Flight altitude range	0-60m
Flight parameters	Flight altitude	60m
	Ascent speed	5m/s
	Spraying width	50mm
	Spray speed	1m/s
	Water flow	10L/m
	Wind resistance level	Level 7  10 meters/s
	waterproof level	Moderate rain, the drone body can be washed with water
	Spray washing area	Approx. 400㎡/Flight
	Flight Duration	Flight altitude	Flight duration	Remaining battery power
		10m	21’13”	20%
		30m	19’10”	20%
		60m	14’35”	20%

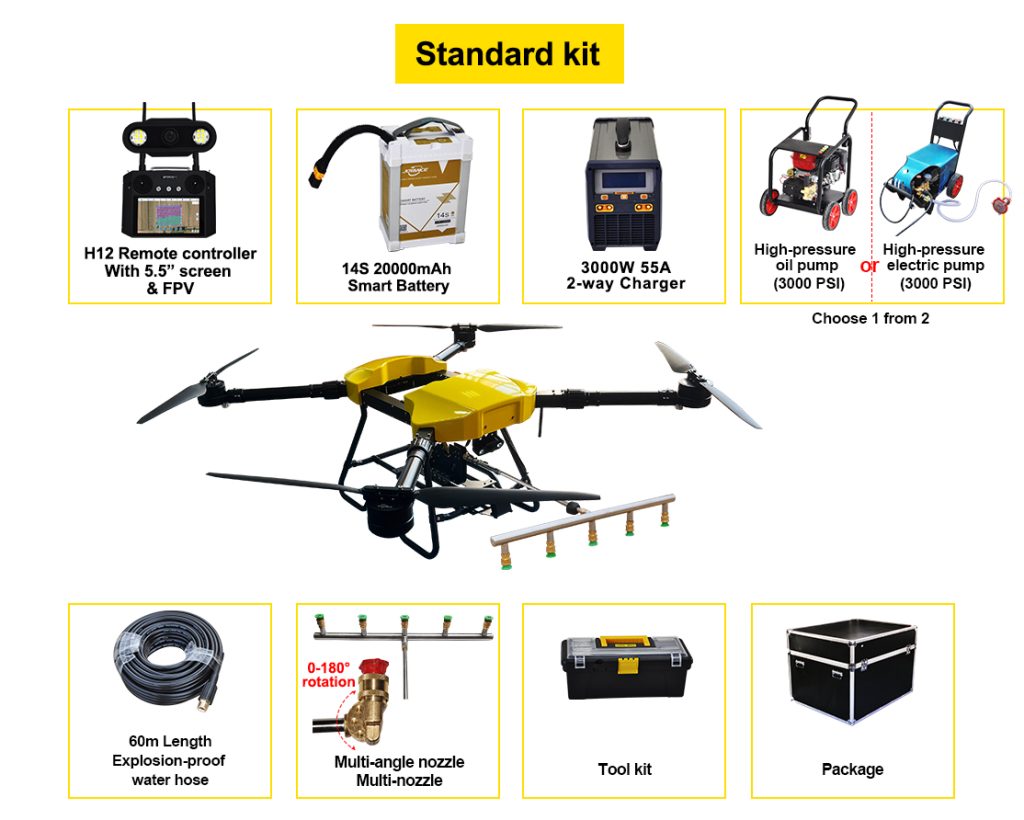

Standard kit	PowerX8 motor*4	max trust 15kg/axis, 81*20mm, 6kg/single axis, IPX6 Protection class IPX6,-20℃~50℃
	propellers *4	3011, 30-inch carbon fiber folding propeller, maximum pulling force 15KG
	Drone Frame *1	Carbon fiber plate, 40mm diameter carbon fiber tube,Aviation aluminum frame
	Smart Battery*1	14S 20000MAH smart battery, >=600 cycles or 2 years
	charger*1	6055 intelligent dual charging, charging 25 minutes/block (power above 95%)
	remote control*1	H12Pro, up to 5.5 watts, 1920*1080 1000nits, 1000 mAh, 6-20 watts.
	FPV*1	Three-body camera, resolution 1280*720, camera angle 120°; LED 6W, capable of night operation.
	Electricity Pressure Washer/Petrol Pressure Washer(any one)*1	Electricity Pressure Washer: 3200PSI Petrol Pressure Washer: 3200PSI, 7.5HP, gasoline/petrol
	Avoidance radar*1	Front obstacle avoidance radar, ranging range 1.5-27cm, maximum EIRP: 30dBm
	Spray boom*3	Stainless steel material, 1m-1.8m length adjustment, 0-90° rotation
	nozzle *4	Brass nozzles, 0°, 15°,25° 40° adjustment

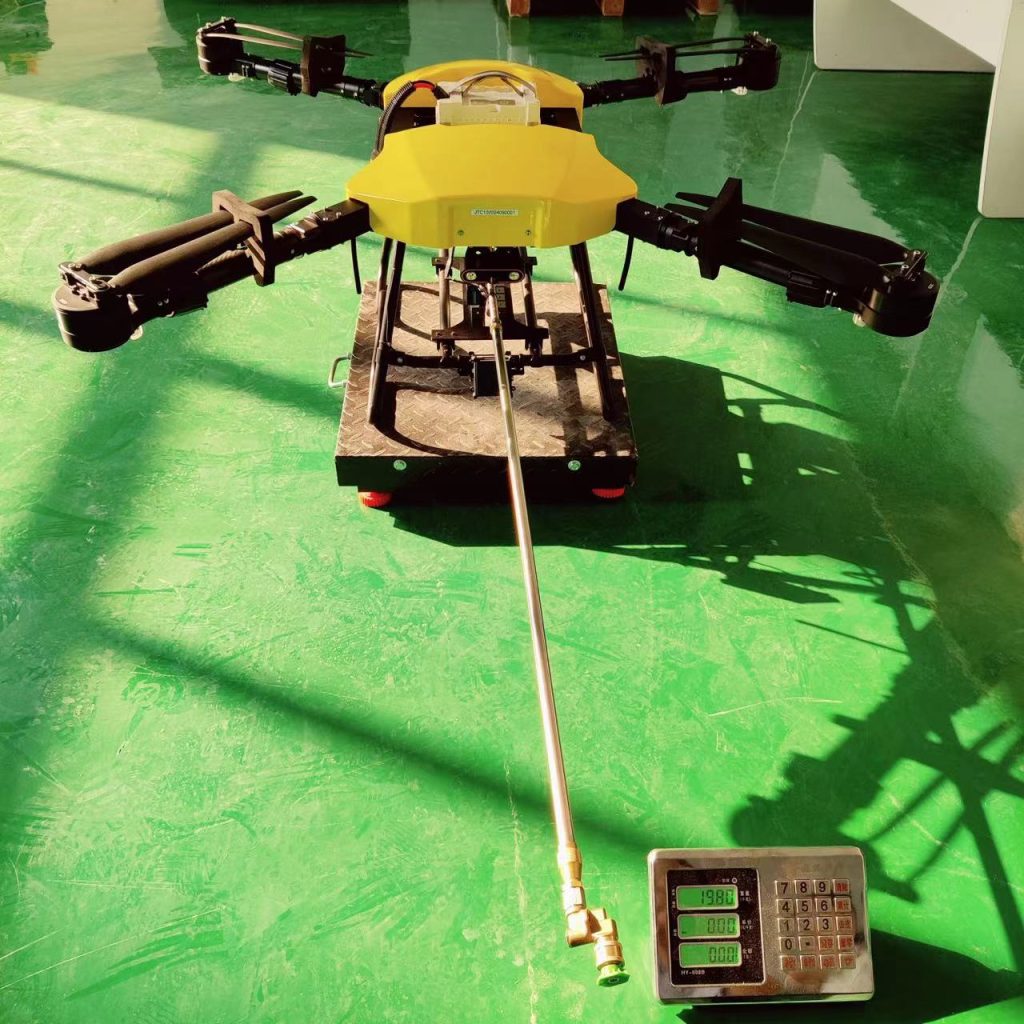

weight	Net weight	12.6KGS (excluding battery and water pipe)
	Maximum load	10KGS
	Maximum take-off weight	22.6KGS
Drone  size	Expand Size	W1.1m x L1.1m x H0.58m
	Folded size	W0.82m x L0.64m x H0.58m
	Wheelbase	1.58m
Package	Aviation aluminum box	Waterproof and fireproof aviation aluminum box
	Aluminum box size	1.54m*0.96m*0.93m
	Aluminum box weight	80KGS





































































































































































































Advantage of washing drones VS manual cleaning service

Safety: Drone cleaning can protect the personal safety of workers and prevent them from being in high altitude, steep or dangerous locations. Reduce the occurrence of accidents and improve work safety.

Efficiency: Drone cleaning can complete large-area cleaning work in a short time, which is more efficient than traditional cleaning methods. Machine efficiency is more than 50 times that of manual efficiency.

Cost-effectiveness: The efficient work of drone cleaning reduces manual labor, lowers labor costs, and creates more profits.

Environmentally friendly：Compared with traditional cleaning methods, drone cleaning usually uses less cleaning agent and water, reducing the impact on the environment. In addition, drone cleaning can reduce atmospheric pollution because it does not rely on a power system that burns fuel.

Real-time monitoring: Drone cleaning is usually equipped with cameras and sensors, which can monitor the cleaning process in real time, and operators can see the quality and effect of cleaning at any time

Flexibility: Drones can adapt to various environments and can work in areas that are difficult to reach manually, such as high places or narrow spaces

Accuracy: Because the drone can clean through preset paths, its movement can be more precise, ensuring cleaning coverage and quality.
