Solar Panels cleaning drone buildings window cleaning drone glass cleaning drone JTC150 Tank



Solar Panels cleaning drone buildings window cleaning drone glass cleaning drone JTC150 Tank jtc-150t-cleaning-drone

JT150T-Water tank cleaning drone

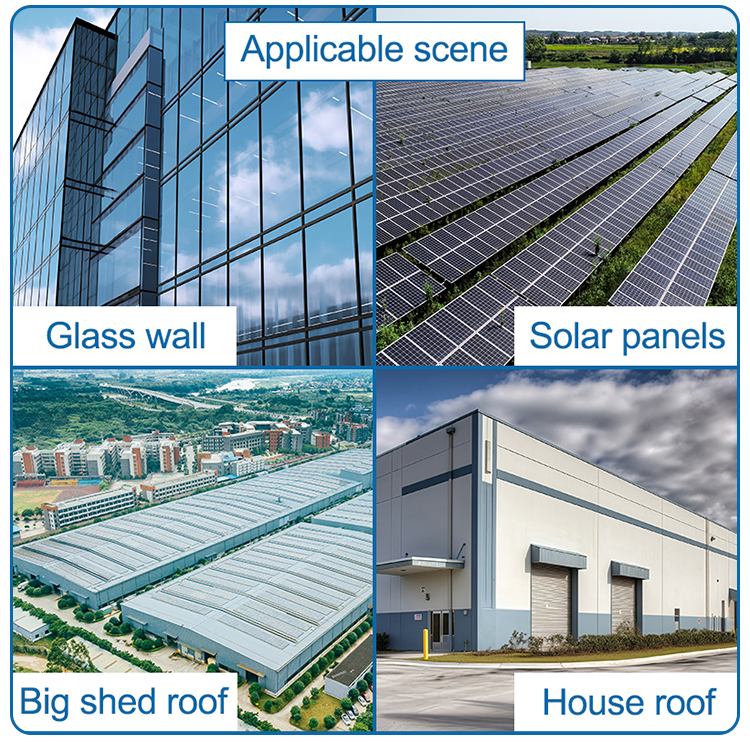

use	Roof, solar panels, etc.
Water tank capacity	30
Flight parameters	Spraying width	80mm
	Fly height	0-150m
	Spray speed	1~3m/s
	One tank of water	4 minutes 30 seconds
	Water flow	10L/min
	One tank of water spraying area	1000㎡/flight
	Wind resistance level	Level 7
	Waterproof grade	In moderate rain, the machine body can be washed with water
	Highlights	Double nozzles, wide spray width, large water output
		1 battery, 2 flights

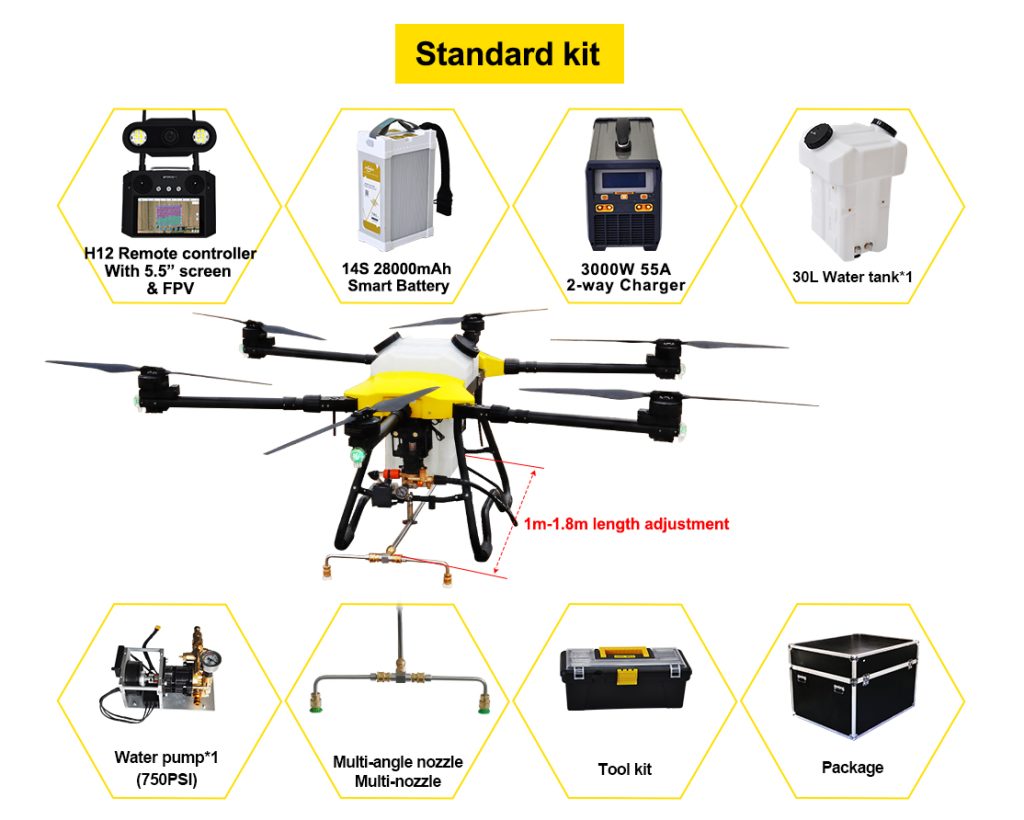

Configuration	PowerX9plus power system	XRotorX9PLUS*4, Single-axis load capacity: 13kg/axis, Protection class IPX6
	Paddle	36190, 36-inch carbon fiber folding propeller, maximum pulling force 26.5KG maximum pulling force 26.5KG
	Frame material	Carbon fiber plate, 50mm diameter carbon fiber tube, 50mm wide aviation aluminum alloy parts
	Smart Battery	14S28000MAH smart battery, >=600 cycles or 2 years
	charger	6055 intelligent dual charging, charging 18 minutes/block (power above 95%)

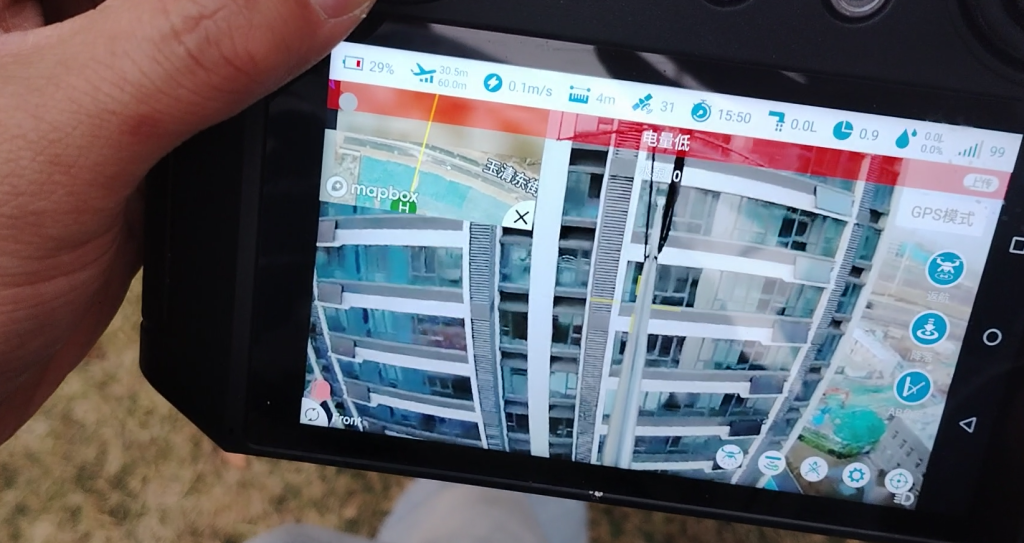

	Remote Control	H12Pro, ultra-high-definition and high-brightness 5.5-inch display, 1920*1080 1000nits, 1000mAh battery, can be used for 6-20 hours.
	FPV	Three-body camera, resolution 1280*720, camera angle 120°; LED light 6W, can be used for night operation.
	Water Pump	Water pump: 750psi
	Obstacle Avoidance	Front obstacle avoidance radar, ranging range 1.5-27cm, maximum EIRP: 30dBm
	Spray boom	Stainless steel material, 1m-1.8m length adjustment, 360° direction adjustment
	nozzle	Double nozzles, 0°, 15°, 25° water outlet adjustment
weight	Net weight	21KG (without battery)
	Maximum load	30KG+1 battery 9kgs
	Maximum take-off weight	60KG
Aircraft size	Expanded size	2.0m*1.3m*0.7m
	Folded size	1.0m*0.88m*0.7m
	Wheelbase	1.85m
Package	Aviation aluminum box	Waterproof and fireproof aviation aluminum box
	Aluminum box size	1.53m*0.95m*0.83m
	Aluminum box weight	About 60KG

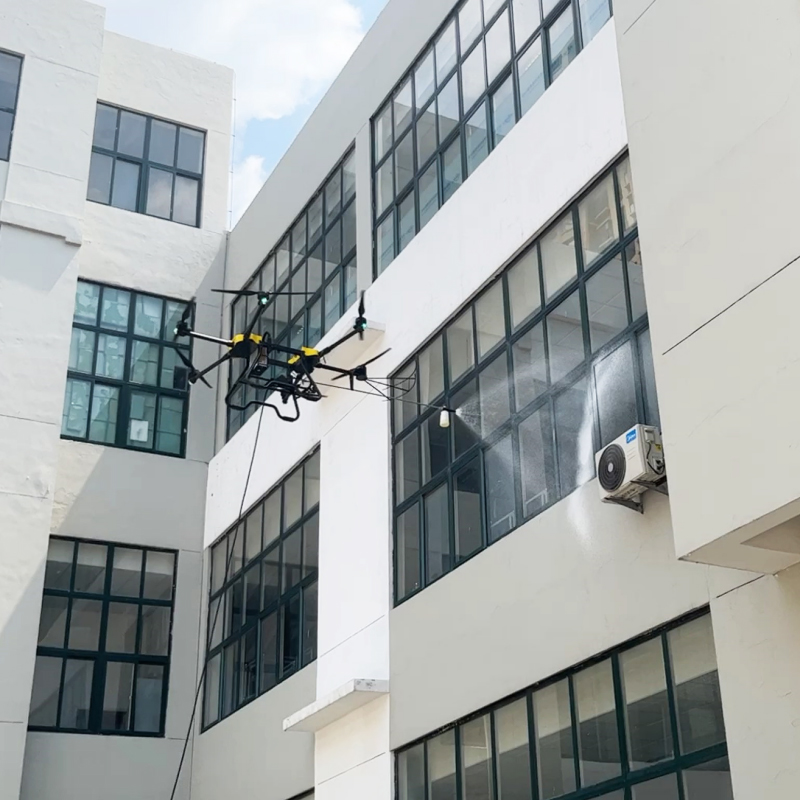

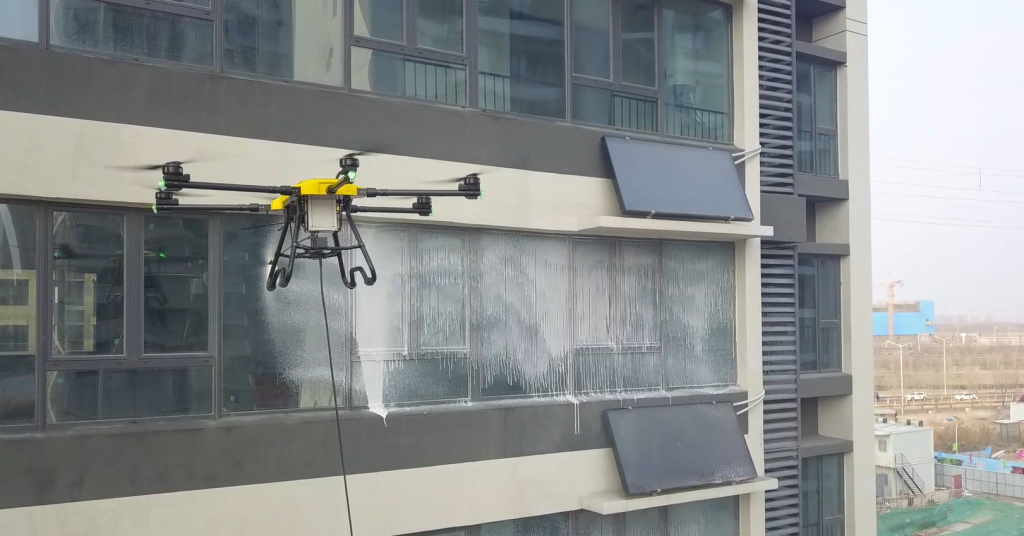

The JTC150T cleaning drone can pull water pipes (0-150 meters) from the ground for cleaning operations. The ground is equipped with a 750 PSI high-pressure water pump. Suitable for cleaning vertical walls or glass curtain walls.

A single fully charged battery supports the drone flying for 15 to 25 minutes. Charging time for a single battery is 20-25 minutes. Generally speaking, we recommend that a drone should be equipped with at least 4 batteries + 2 chargers to achieve continuous operation.

Our company, JOYANCE TECH, has been building a team dedicated to the research and development of agricultural drones since 2014. It was officially established in 2016 and registered the JOYANCE brand. It is one of the earliest R&D and manufacturing enterprises of large-load drones in China.

In order to comply with the needs of market development, our company began to develop new product cleaning drones in 2019. It is the first company in China to start the research and development and manufacturing of cleaning drones. We currently has nearly 5 years of industry experience. JOYANCE is the leading cleaning drone supplier in China and even the world. Because we have very mature experience in the production of large-load agricultural drones, our cleaning drones have very excellent product performance.

At present, our company’s drone products have obtained ISO9001, EU CE, RoHS, and US FCC/FAA certifications. And our company’s R&D team has obtained more than a dozen technology patents. Products have been exported to 100 countries and regions.

























































Advantage of washing drones VS manual cleaning service

Safety: Drone cleaning can protect the personal safety of workers and prevent them from being in high altitude, steep or dangerous locations. Reduce the occurrence of accidents and improve work safety.

Efficiency: Drone cleaning can complete large-area cleaning work in a short time, which is more efficient than traditional cleaning methods. Machine efficiency is more than 50 times that of manual efficiency.

Cost-effectiveness: The efficient work of drone cleaning reduces manual labor, lowers labor costs, and creates more profits.

Environmentally friendly：Compared with traditional cleaning methods, drone cleaning usually uses less cleaning agent and water, reducing the impact on the environment. In addition, drone cleaning can reduce atmospheric pollution because it does not rely on a power system that burns fuel.

Real-time monitoring: Drone cleaning is usually equipped with cameras and sensors, which can monitor the cleaning process in real time, and operators can see the quality and effect of cleaning at any time

Flexibility: Drones can adapt to various environments and can work in areas that are difficult to reach manually, such as high places or narrow spaces

Accuracy: Because the drone can clean through preset paths, its movement can be more precise, ensuring cleaning coverage and quality.
